Last time we were impressived by 690G from AMD
the onboard performance is much better than Geforce 6200
This March, amd bring her next combo chipset within new technology and
supported DX.10,the chipset is named 780G
a combine motherboard chipset including HD 3200 which supported full HD
now the value combo motherboard has good 3d solution and HDMI,DVI,D-SUB
output ability,on the same time,Cat 8.3 give her anther live to hyperlink extended
graphic card,called hybrid crossfire.
socket AM2+,u can upgrade to phenom,and 780G has HT3.0
the HD 3200(onboard GPU) has UVD tech, that can be a solution for watching HD movie.
SB chip is SB700, has 6 devices of SATA,but no Raid mode,and USB devices u get 14
here is AMD 780G Diagram
a early sample from Gigabye, the model is ga_ma78g_s3h

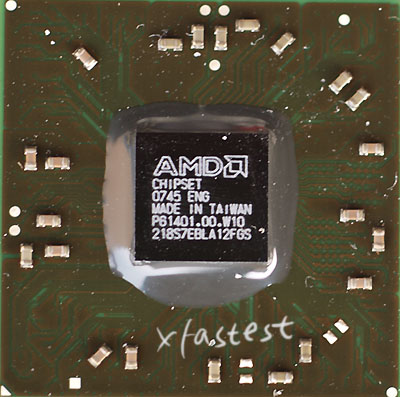

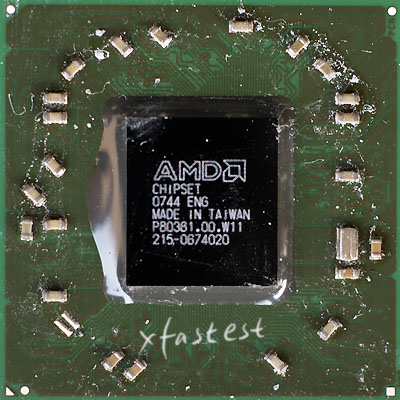

from the pictures we can see the chipsets are very tiny,but no forget,it has HD 3200 GPU inside.
In the future days,i will test and upload the performances seeing what i can do with this combo 780G.
Gigabyte GA MA78G S3H
PMW is controlled by ISL6324,has 4phases

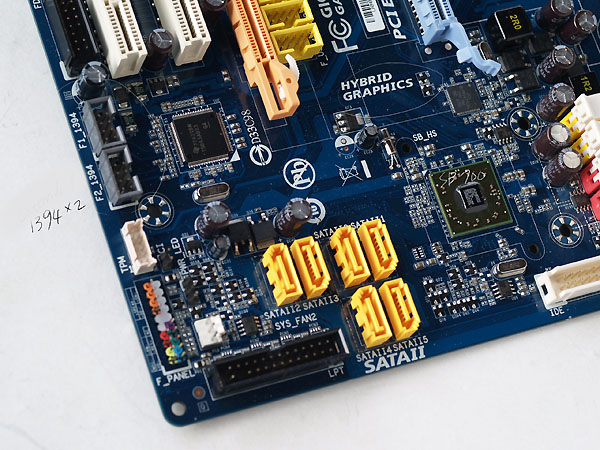

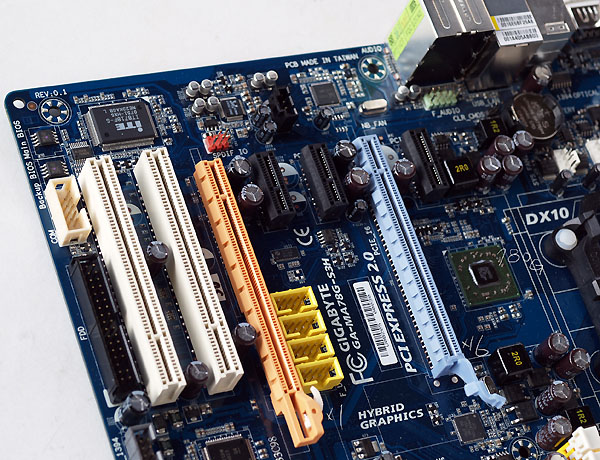

780G has 1 PCIe 16x and 2 pcie 1x,on the picture can see 3 black pcie 1x,1 pcie16x
the second pcie16x infact is 1x when see from backside of pcb.

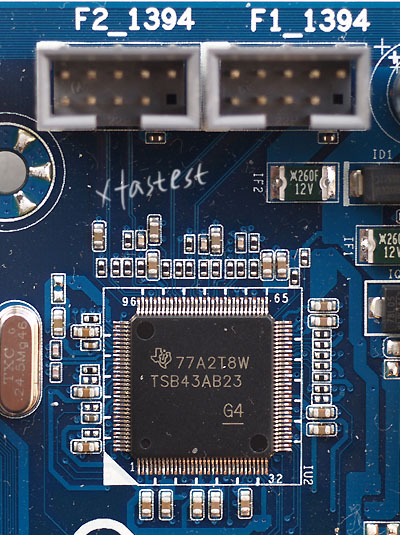

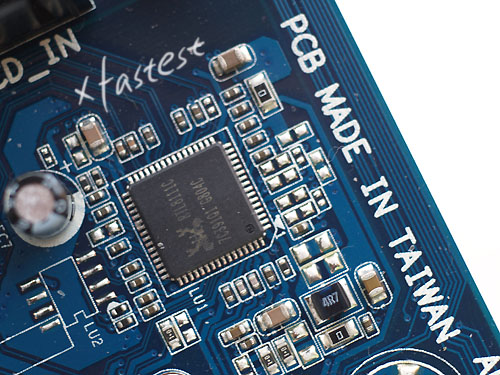

thee is a additional ieee1394 controlled ic,from the I/O part find one,and on the mother
board has 2 for internal using.

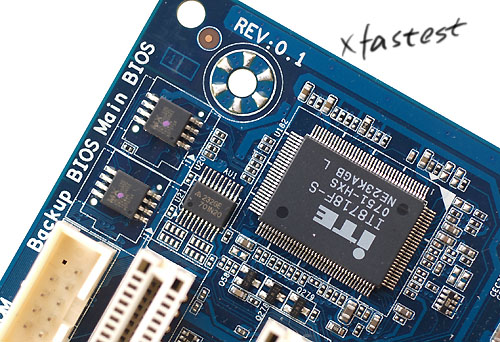

780G (HD 3200 overclcokable through Gigaybte's bios)

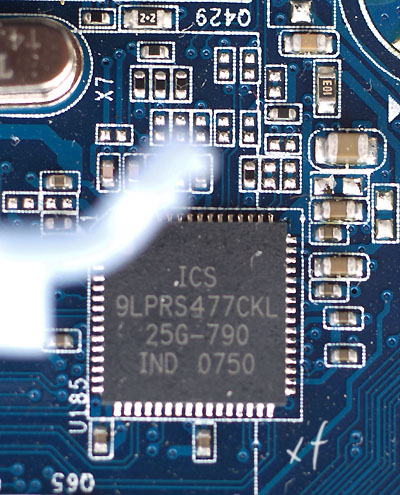

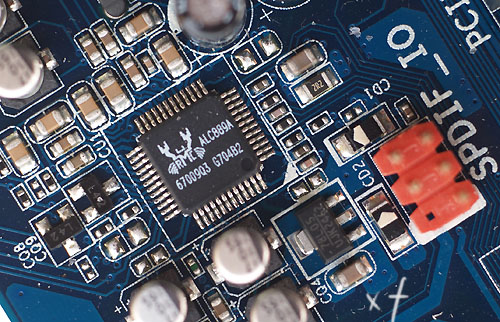

4 layers pcb layout
pictures help viewer seeing very clear,will back for testing.
very impressived in this 780G motherboard
in the bios i can see the oc feature of amd 780G
and graphice i can manage 512mb shared from my ddr2 dimms
manage memory for Graphic,help u manage daul mointor and 3d texture using.
have u ever image that? u can overclock with onboard GPU? try this 780G available adjust clock
throught bios setting,also the grahpic banwidth is control by ur ddr2 memory.
3Dmark06 scores 2010p. for a onboard GPU its awesome.
the GPU overclock 980mhz (default is 500mhz)is pretty easy with stock gigabyte HSF
and FSB and HT-frequency looks very nice i can manage 334mhz to my dualcore 4800+
and HT is 1670mhz 16bit,that HT3.0 clock is much better to 790fx,that one i have tested before.
Not suprise,we need new bioses
under bios the overclock feature,max u can manage 1100mhz
with the tiny HSF stock,and put a 8cm fan near the heatsink
1100mhz is not a problem,the default is 500mhz,now is overclock 120%
