我最豪華！MSI X38 DIAMOND [ Wow! ]
MSI ,the most regarding motherboard maker
focus on gaming and overclockng , X38 Diamond within INTEL's X38 Northbridge
Supported daul PCIe 16x Slot,the onbaord IDT 89HP16T supports additional PCIe 16x
with this board,has 4 vga and 8 Display solution
X38 also supported AMD/ATI Crossfire , executes dual 16x working performance
i see this mobo has many innovations and special features

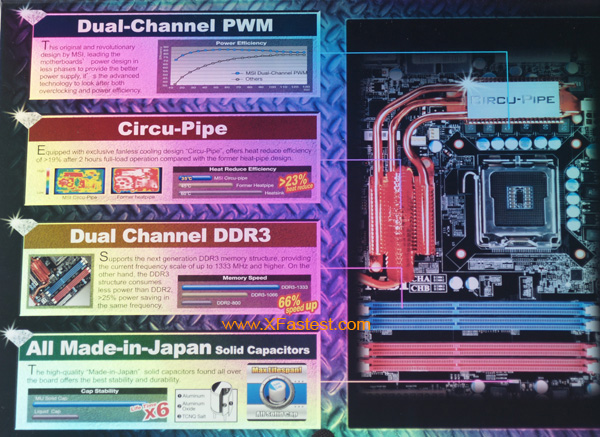

the Circu Pipe and Dualchannel PWM and all solid caps reduce much heater from Quadcore and Northbridge
more stronger and more stable
and for overclocking users,troubleshot poster is more convenient and will help u debug with overclocking
aslo,Creative x-fire audio inside, the gamers love this
MSI skytel and intel Lan card
with all of those features and components,this is the most highend desktop i ever see
can't wait to test this mobo
X38 Diamond features
- INTEL X38,ICH9R
- Supported DDR3 memory
- DualChannel PWM
- Creative X-fire treme Audio PCIe1x
- MSI SKYTEL
- INTEL GLan onboard
- Circu Pipe
- IDT PCIE 16x Control Chip
- SiliconImage Sata Raid
- TroubleShoot Poster
Boxed

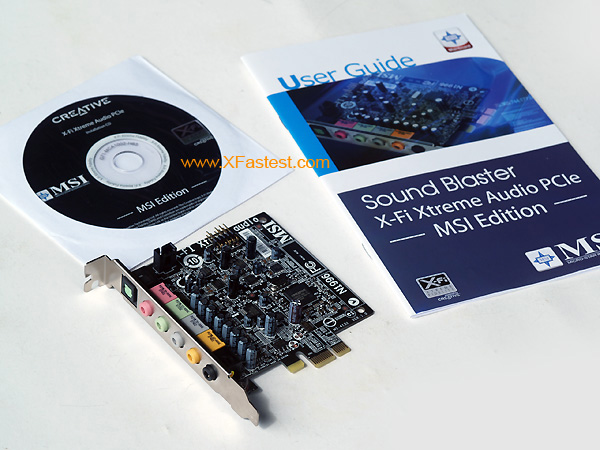

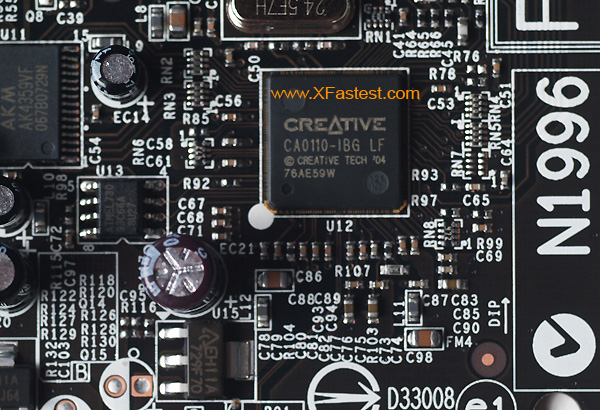

Cretive X-Fire extreme audio

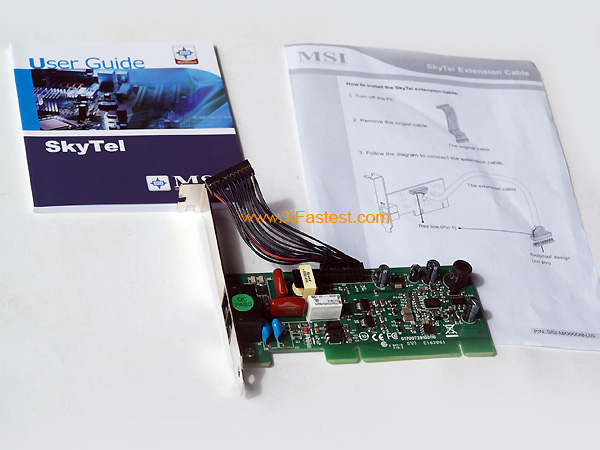

MSI SKYTEL

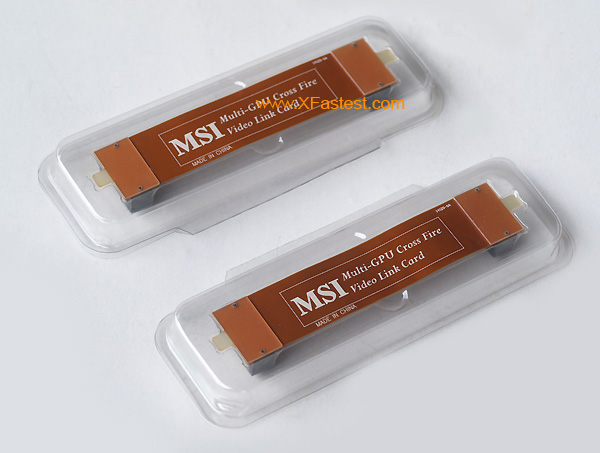

extened Crossfire Bridge

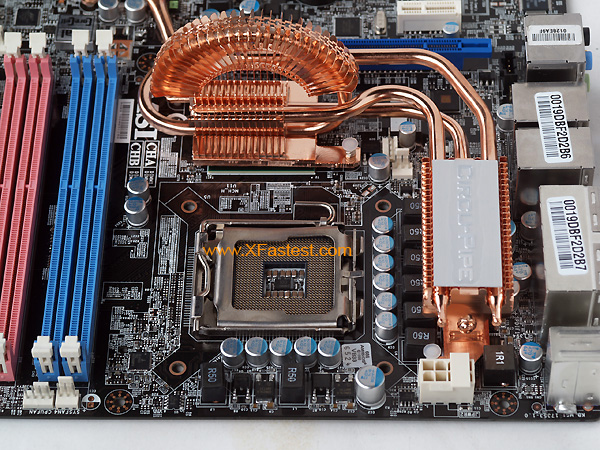

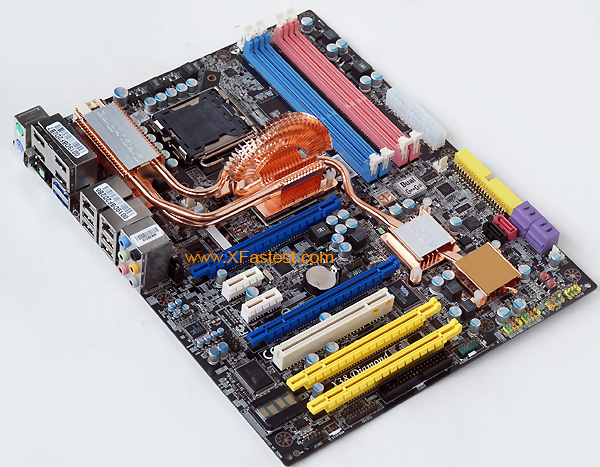

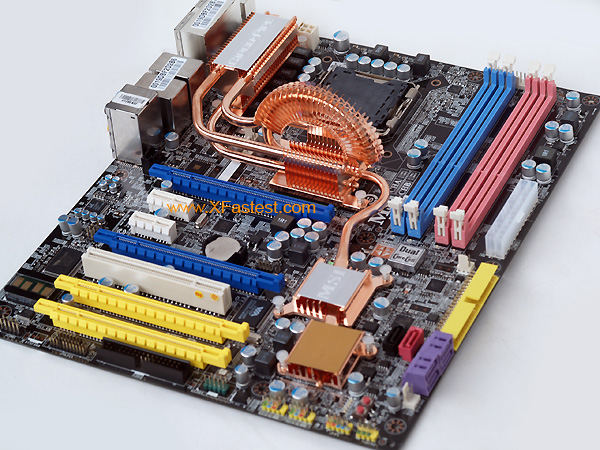

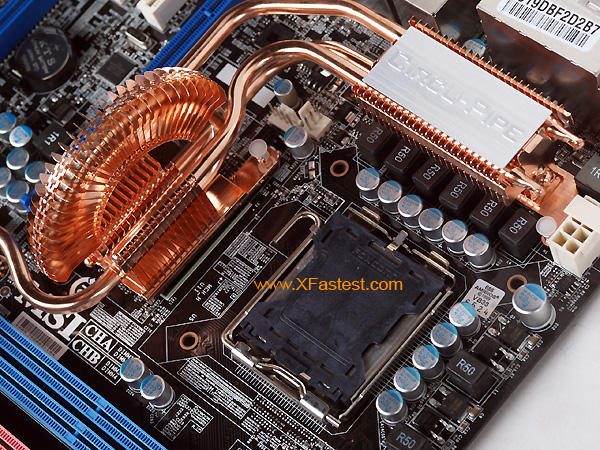

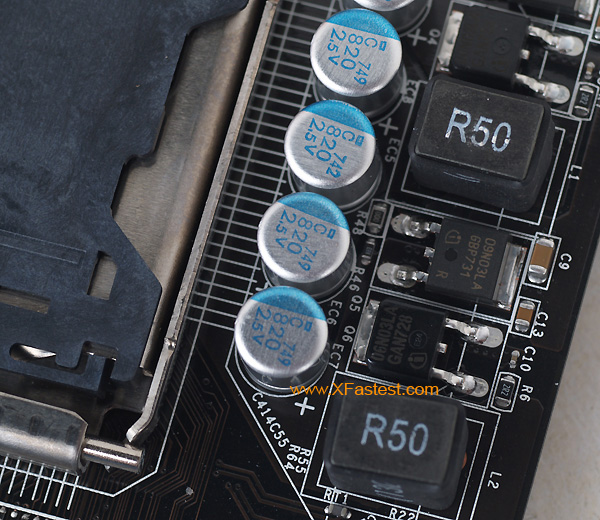

circu pipe and all japanese's solid caps

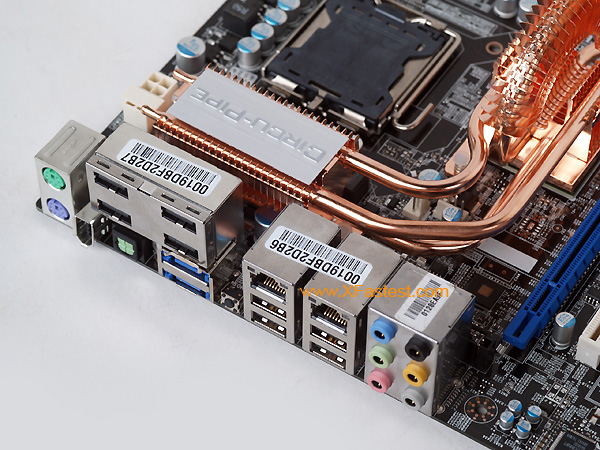

I/O out put, eSATA*2,IEEE1394,USB*8,INTEL Glan (one is used Realtek)

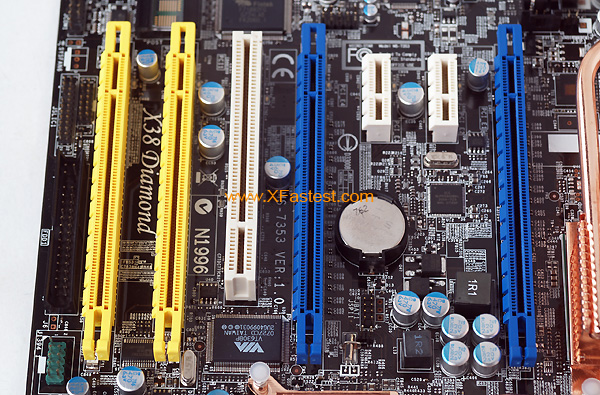

Blue Pcie slot working 16x,yellow at 4x

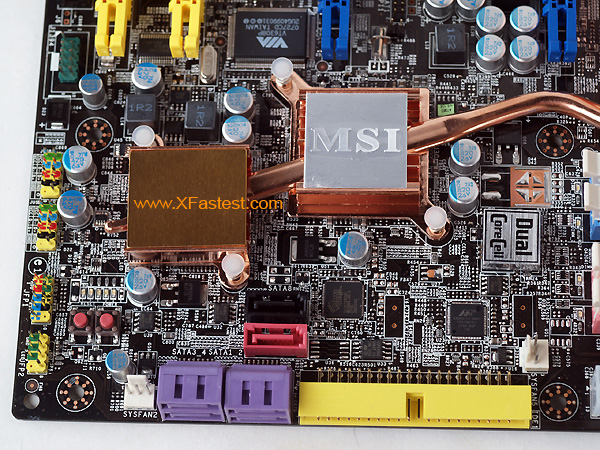

SiliconImage SataRaid,ICH9R raid,marvell IDE control chip

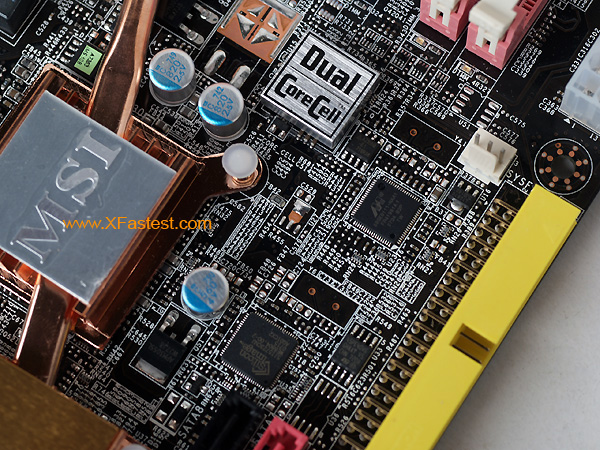

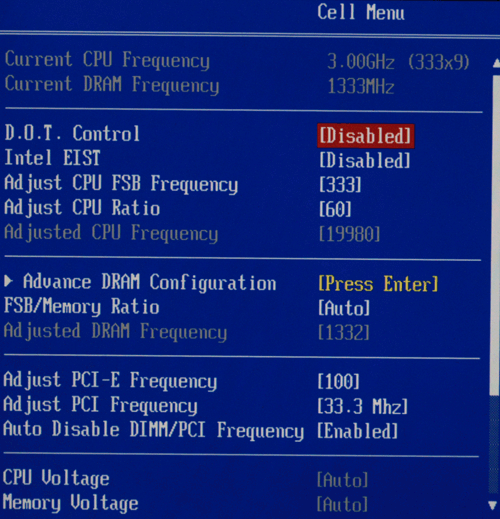

DualCore Cell ,MSI's overclocking IC

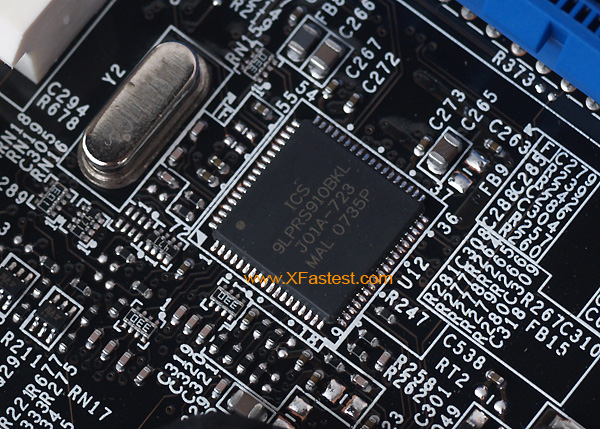

Clockgen

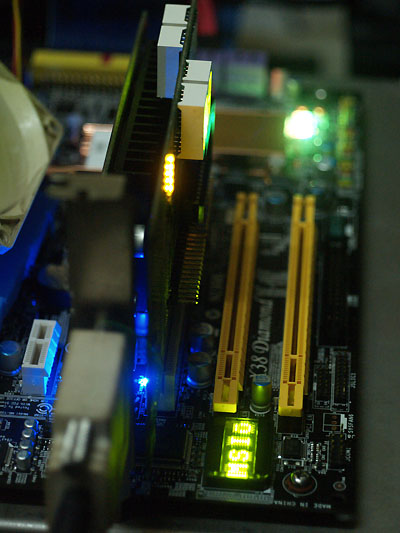

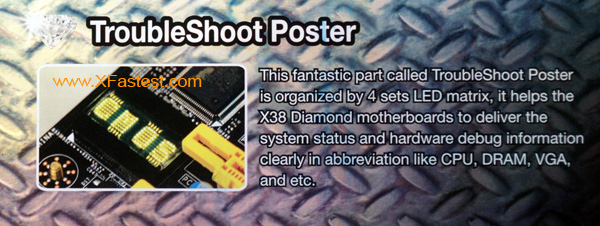

Troubleshott poster,help u debug

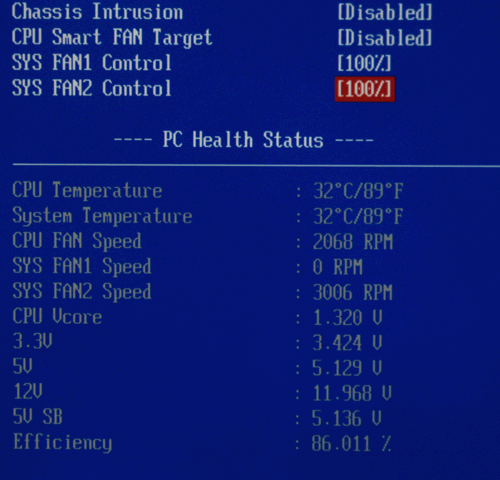

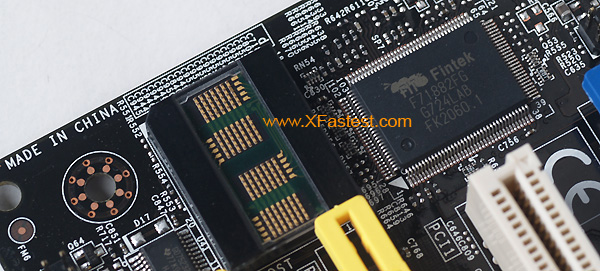

Fintek ic is the IO decting,all informance u see at everest come from here

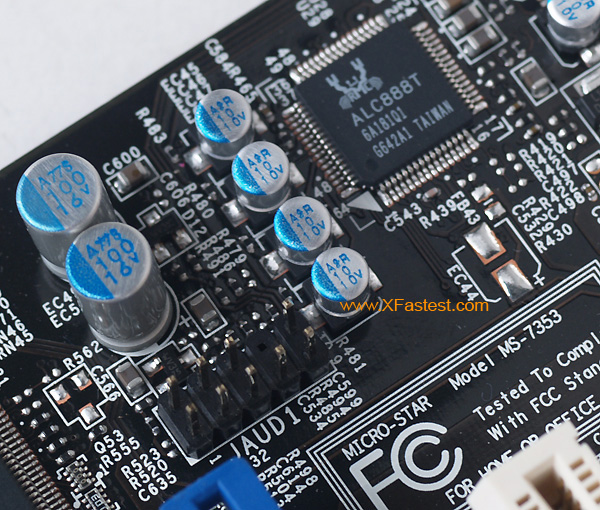

reatek ALC888T onbard soundcard
INTEL Glan

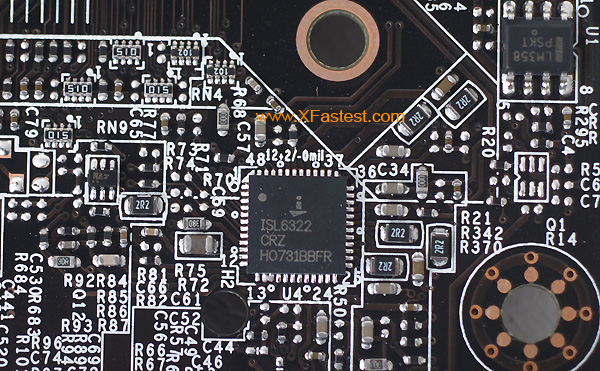

PWM IC is used ISL6322, 4 phases and dualchannel
Testing will be continued |
級別: 高級會員
..配件又多..不知道價位與效能如何..好不好調教呢..
